Vertical Pellet Mill

未设置图片

KJVPM-Series Pellet Mill is a type of vertical ring die pellet mill, it combines the advantages of a flat die pellet mill and a traditional horizontal ring die pellet mill, especially suitable for fluffy and loose feedstock like palm EFB fiber, straw powder and etc. It also has the benefits of low electricity consumption.



Features:

  • The larger size of the pelletizing chamber
  • Vertically material feeding by gravity is more constant and evenly.
  • Automatic lubrication of the main shaft of the pellet mill
  • Two sides useful ring die reduces spare parts cost.
  • Lower electricity consumption

Wide variety of input materials :

  • Sawdust
  • Straw powder
  • Rice husk (paddy husk)
  • Peanut stalk powder and etc
  • Palm EFB fiber

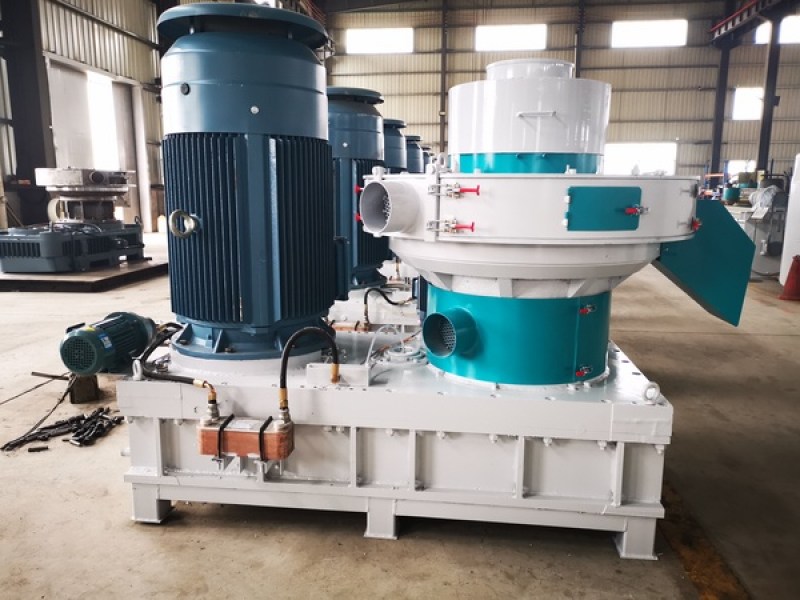

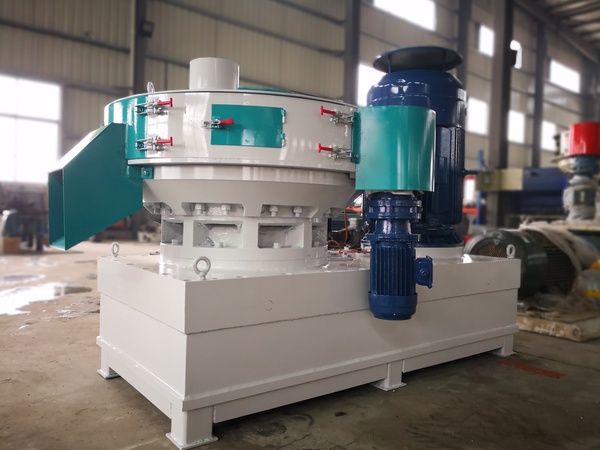

Machine Pictures

china vertical pellet mill china vertical pellet machine



Specification:

Types KJVPM560 KJVPM700
Main Motor

90/110kw

132/160kw

Pellet size 6/8/10/12mm 6/8/10/12mm
Capacity  800-1500KGS/H 1200-2000KGS/H
Machine dimension 2800*1500*1350mm 3000*1700*1500mm
Weight 5000kgs  5800kgs

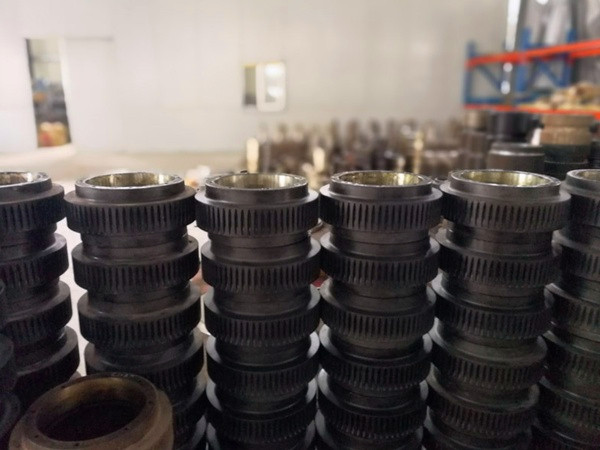

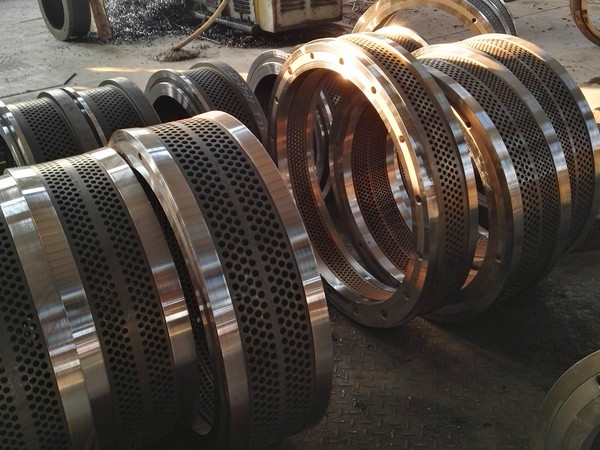

Spare parts for Vertical ring die pellet mill:

china ring die two sides roller pellet mill china
